SST5 5-gas

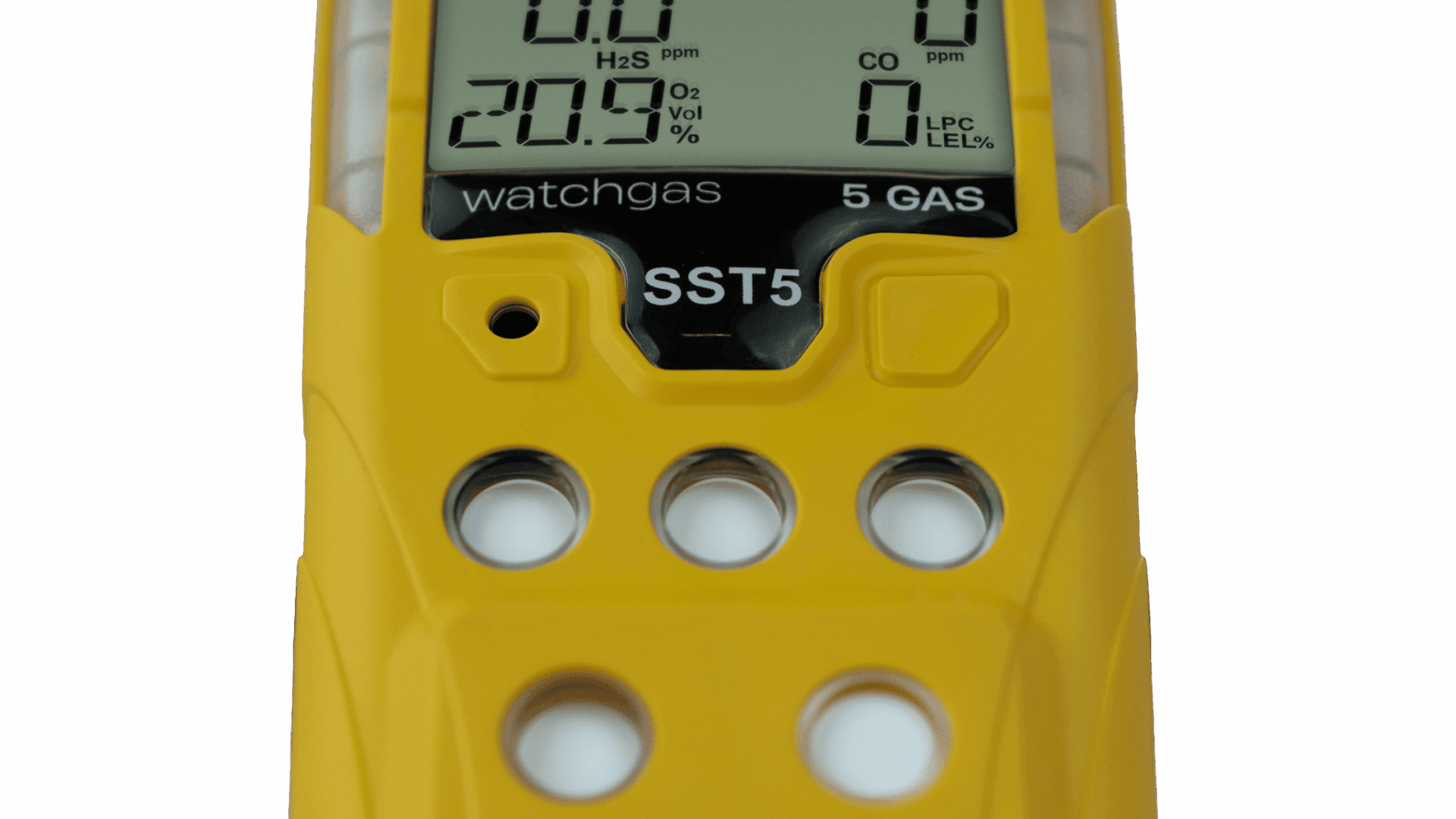

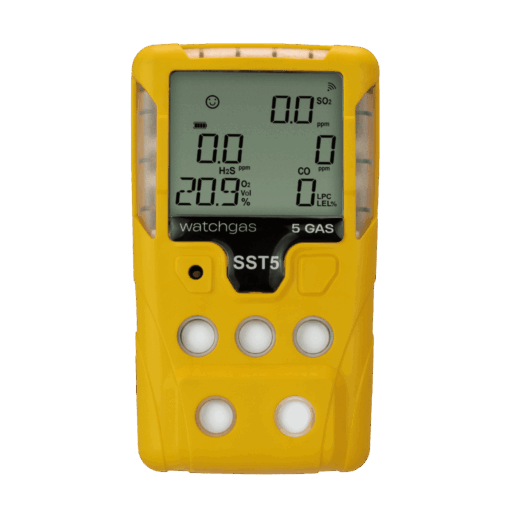

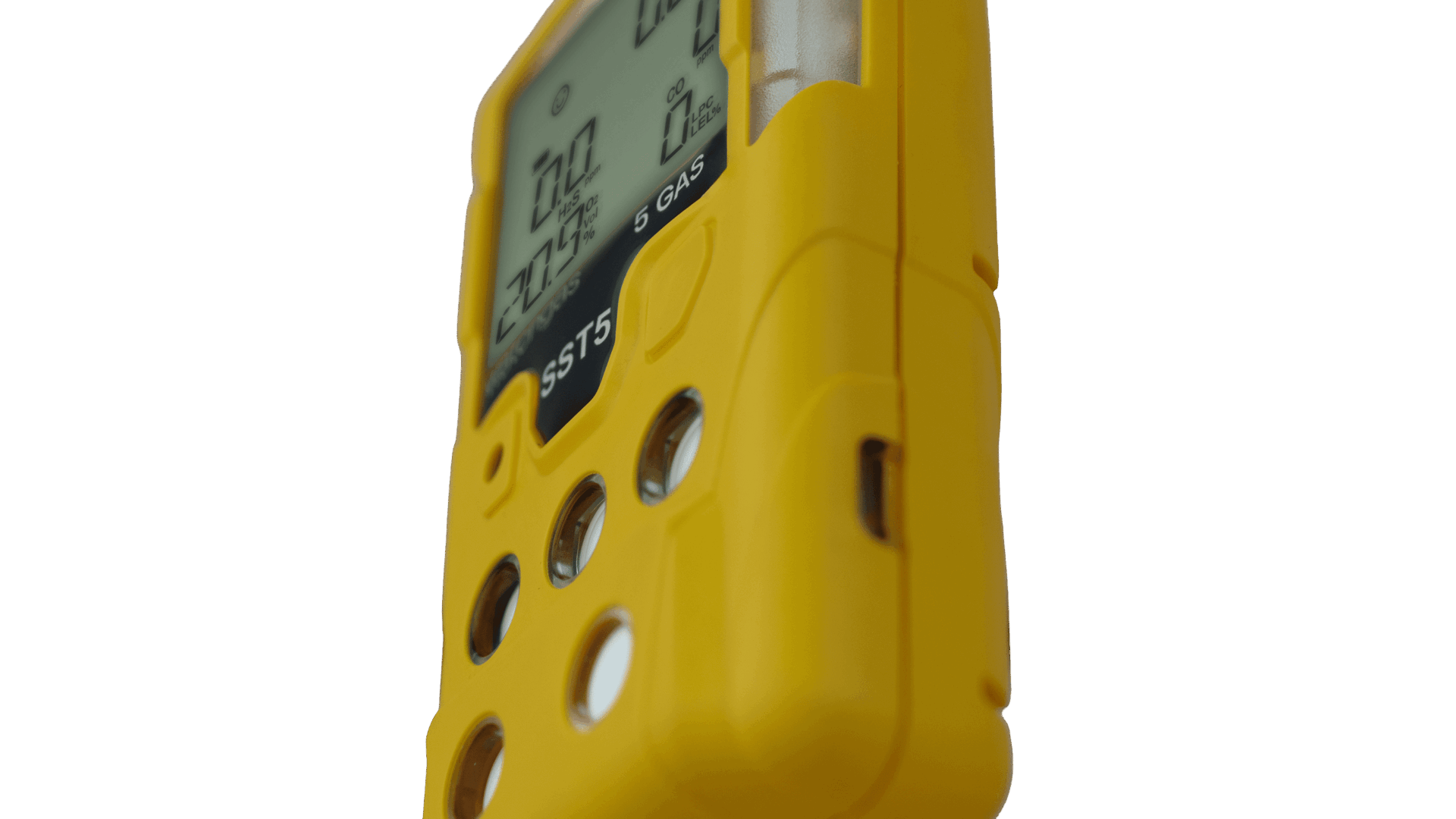

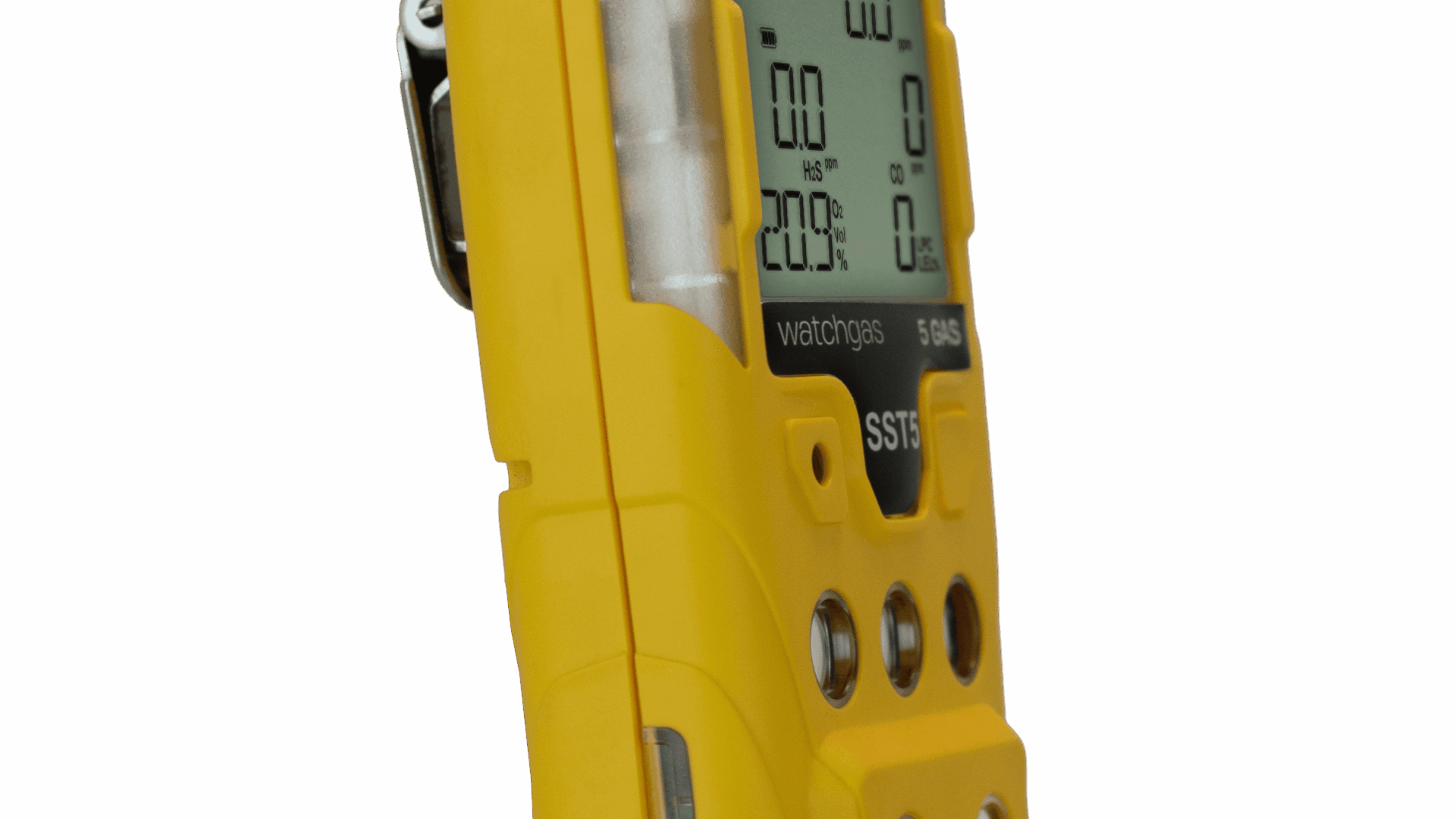

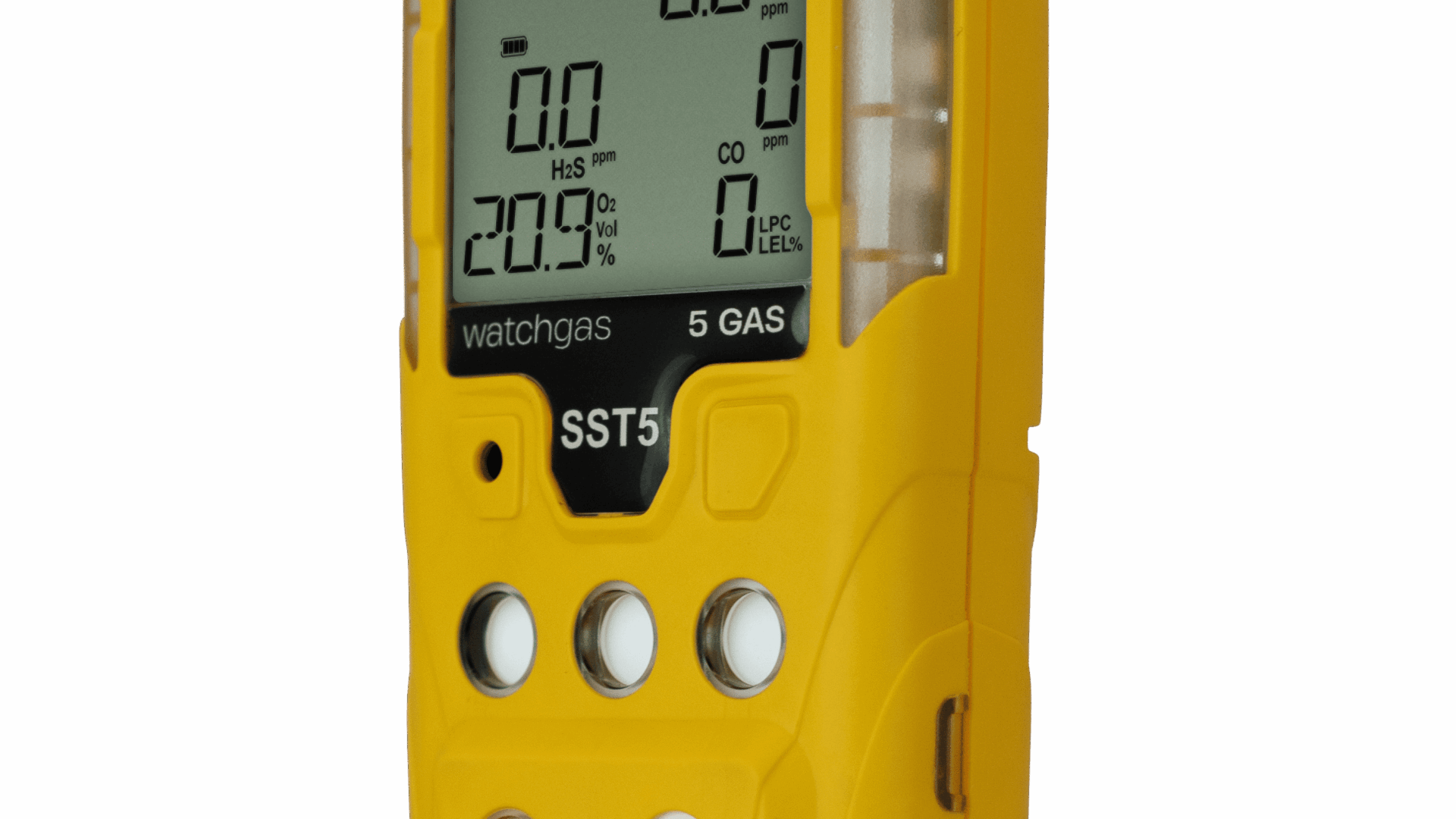

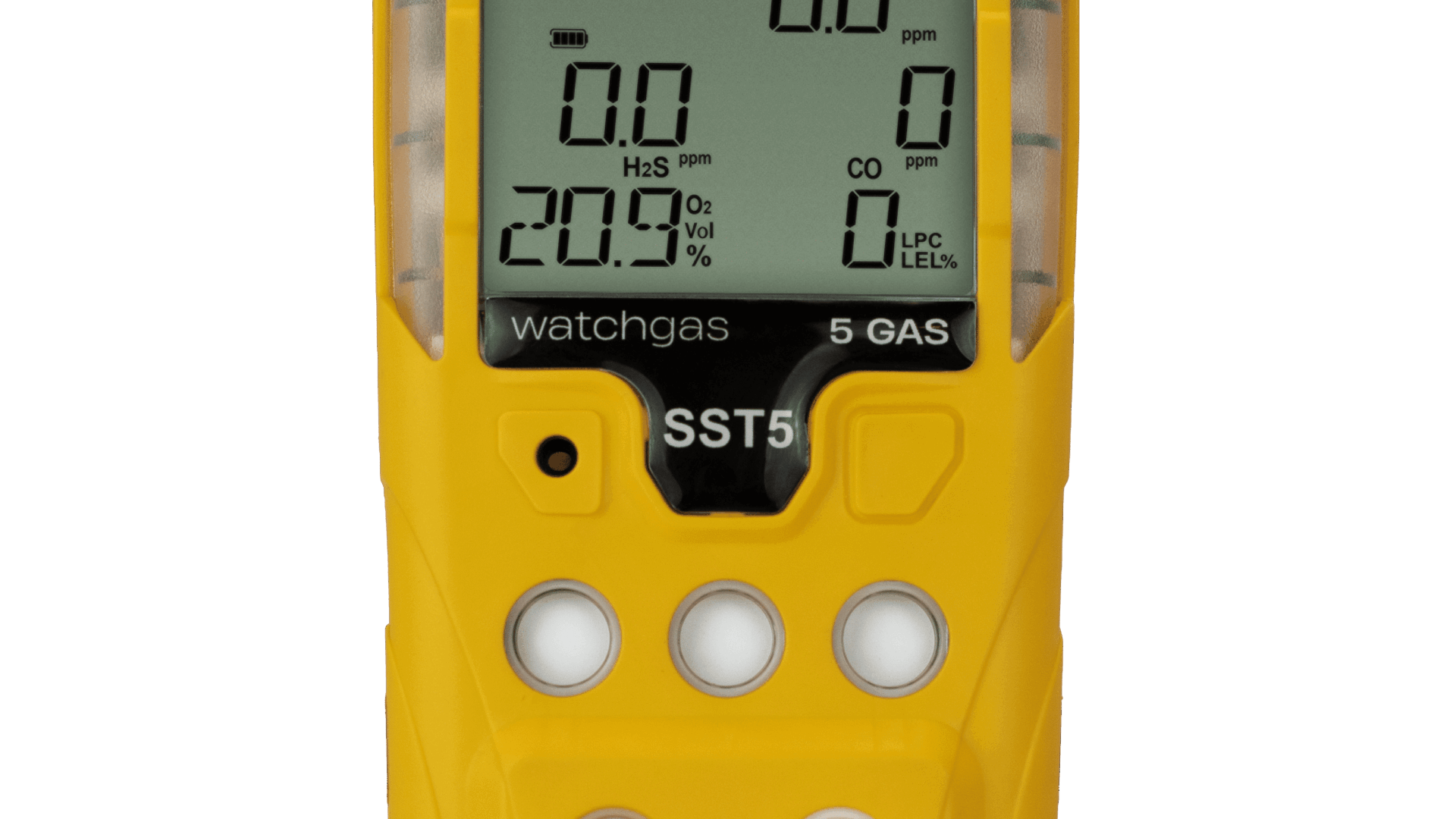

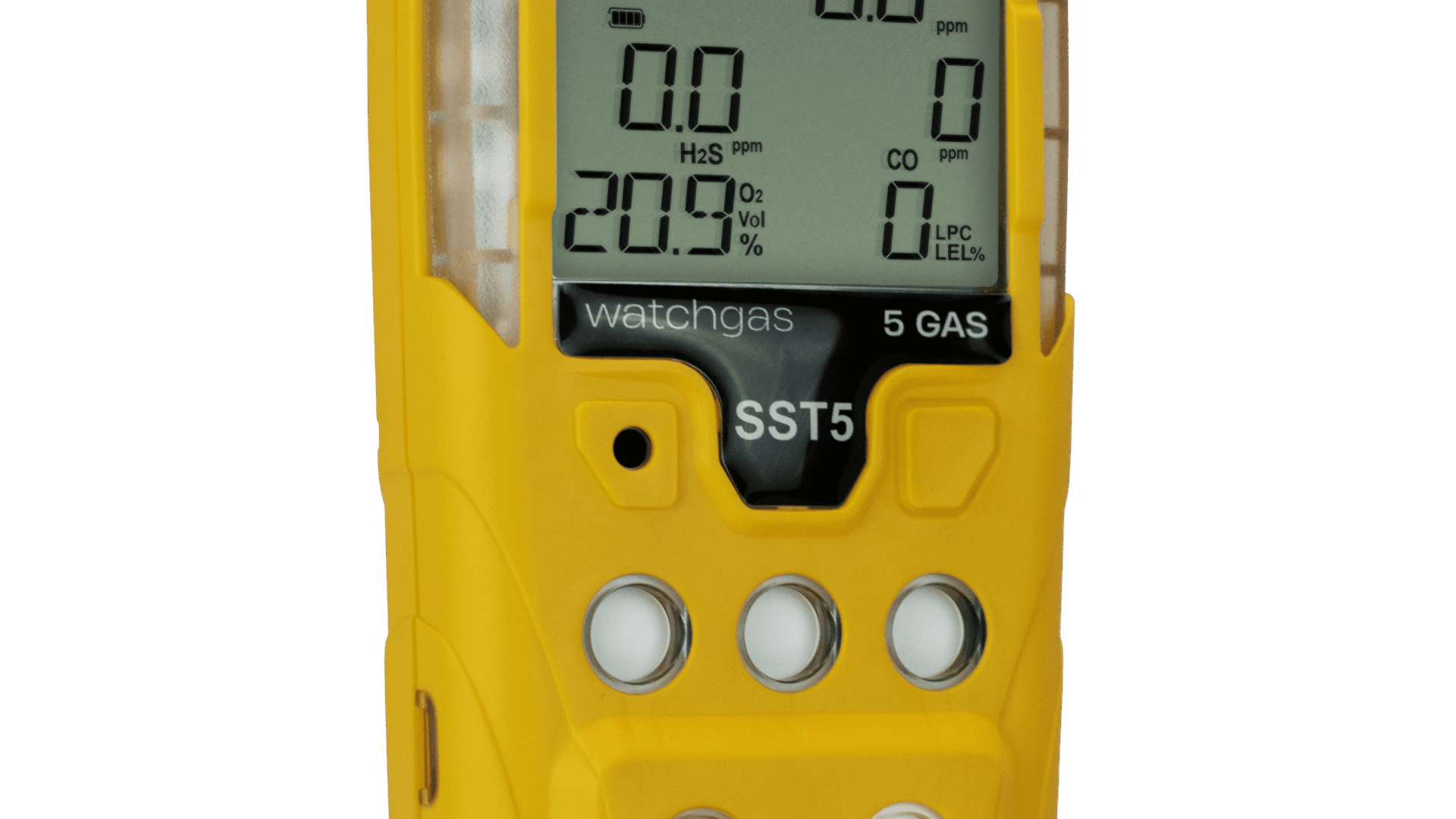

NEW! SST5 | 1 to 5-Gas Models | Multi-Gas Detection
This is small. Really small. WatchGas SST5 detectors set a new standard in 5-gas detection. So slim, compact and lightweight you won’t notice you’re wearing it. No harness. No bulk. Just full 5-gas protection that is typically 42% smaller and stays in place while you work, clipped comfortably in the breathing zone where detection matters most. SST5 displays a large, clear display for quick and the widest operating temperature range in its class and lowest cost of ownership.
Available with multiple gas options: H₂S, O₂, LEL, CO, SO₂, HCN, NH₃, Cl₂, ETO, NO₂, NO, Xs
Scroll down to learn more.
- Ultra comfortable: up to 40% smaller and up to 30% lighter than comparable 5-gas detectors.
- Safer with up to 20 seconds more to evacuate due to faster sensor response
- Reduced test gas consumption via quicker sensor response potentially saves you 1000s
- Hear above the noise – up to 2x louder than comparable 5-gas detectors
- Quicker decisions for safety with the up to 20% larger display than comparable devices
- On and working over multiple shifts: 200-hour runtime
- More uptime with fewer false alarms; stable sensor performance over the widest operating range (60°C to -40°C / +140°F to -40°F)
- Proactive safety, compliance and management with the optional RTR solution
Description
The SST5 fits within the entire WatchGas SST Range of single and multi-gas portable detectors and the optional RTR industry solution — giving your team a data-based, scalable platform built around how you actually work.
WatchGas enables safety managers to continue to shift their focus from compliance tracking and policing to proactive safety leadership, making better decisions with total compliance awareness and the data and reporting they need.
Operations managers gain the visibility to plan and manage detector fleets with predictable costs.
Funnel your workflows with WatchGas task-specific devices for:
- Easier data gathering, less paperwork.
- Reduced gas testing worker bottlenecks
- Accurate compliance awareness
Everything you need to elevate worker safety, streamline operations, increase business continuity, and achieve the lowest cost of fleet ownership.
Product information
Your operation. Your solution. Your budget.
Start with any SST Range gas detector and build from there.
Choose value-added accessories to suit your specific application.
Choose optional WatchGas Safety Ecosystem devices (dock, kiosk, app):
- SST Dock – universal SST docking station
- Compliance Kiosk – Tap&Go your data
- Device Link App – Tap&Go your data
Add the optional RTR Software for the complete and affordable solution; flexible enough to scale across multiple plants globally, or down to a field office or individual remote field workers.
- RTR software – proactive decisions and reporting
The WatchGas RTR Solution uniquely enables you to choose to self-manage your fleet or hand maintenance management it over to a WatchGas distributor.
| Size | 4.2 x 2.4 x 1.0 in / 107.9 x 62.4 x 26.1 mm |
| Weight | 6.6 oz. / 188 g |
| Temperature | H2S, CO, O2 & SO2: -40 ~ +140 °F / -40 ~ +60 °C; Others: -4 to +122°F / -20 to +50°C; LEL: -40 to +140°F / -40 to +60°C |
| Humidity | 5 ~ 95% r.h. (non-condensing) |
| Typical battery life | SST5 LEL LPC (Low Power Catalytic) - 48hr; SST5 LEL NDIR (Non Dispersive Infrared) - 200hr |
| Induction charger | 2 to 3 hours |
| Event logging | 100 events |
| Data logging | 6 months |
| IP | 65/68 |
| Communication | NFC |
| Calibration | 6 month as standard |
| Certifications and approvals | ATEX, IECEX, UKEX : LEL-LPC II 1 G Ex ia IIC T4 Ga, I M1 Ex ia I Ma LEL-IR II 1 G Ex ia op is IIC T4 Ga, I M1 Ex ia op is I Ma |
| North America: (non-IR) Class I Division 1 Group A,B,C,D T4 U.S. Class I Zone 0 AEx ia IIC T4 Ga Canada Ex ia IIC T4 Ga North America: (IR) Class I Division 1 Group A,B,C,D T4 U.S. Class I Zone 0 AEx ia op is IIC T4 Ga Canada Ex ia op is IIC T4 Ga | |
| EMC Directive 2014/30/EU | |
| (PESO) Ex ia IIC T4 Ga Ex ia op is IIC T4 Ga (with IR sensor) | |
| (Korea) Ex ia IIC T4 Ex ia op is IIC T4 (with IR Sensor) | |
| Ex ia I Ma, Ex ia IIC T4 Ga Ex ia op is I Ma, Ex ia op is IIC T4 Ga (with IR sensor) | |
| (ABS Type Approved) 24-00T2542343-1-PDA | |
| Warranty | Instrument and O₂, LEL, CO, H₂S, SO₂ Sensors: 2 years Other sensors: 1 year |
| Sensor type | Gas measuring range | Low alarm | High alarm | STEL | TWA | Resolution |
| Micro Sensors | ||||||
| H2S | 0 - 500 ppm | 10 ppm | 15 ppm | 15 ppm | 10 ppm | 0.1 ppm |
| CO | 0 - 2000 ppm | 35 ppm | 200 ppm | 100 ppm | 20 ppm | 1 ppm |
| O2 | 0 - 30% Vol. | 19.5% Vol. | 23.5% Vol. | N/A | N/A | 0.1% Vol. |
| SO2 | 0 - 100 ppm | 5 ppm | 10 ppm | 5 ppm | 2 ppm | 0.1 ppm |
| Mini Sensors | ||||||
| Cl2 | 0 - 50 ppm | 0.5 ppm | 1 ppm | 1 ppm | 0.5 ppm | 0.1 ppm |
| ETO | 0 - 100 ppm | 5 ppm | 10 ppm | 10 ppm | 5 ppm | 0.1 ppm |
| HCN (unfiltered) | 0 - 50 ppm | 5 ppm | 10 ppm | 4 ppm | 4 ppm | 0.1 ppm |
| HCN F* | 0 - 50 ppm | 5 ppm | 10 ppm | 4 ppm | 4 ppm | 0.1 ppm |
| NH3 | 0 - 100 ppm | 25 ppm | 50 ppm | 35 ppm | 25 ppm | 0.1 ppm |
| NO | 0 - 100 ppm | 25 ppm | 50 ppm | 50 ppm | 25 ppm | 0.1 ppm |
| NO2 | 0 - 20 ppm | 2 ppm | 5 ppm | 5 ppm | 3 ppm | 0.1 ppm |
| SO2 | 0 - 40 ppm | 5 ppm | 10 ppm | 5 ppm | 2 ppm | 0.1 ppm |
| Xs** | 0 - 100 ppm | 25 ppm | 50 ppm | 50 ppm | 25 ppm | 0.1 ppm |
| LEL Sensors | ||||||
| LPC | 0 - 100% LEL | 10% | 20% | N/A | N/A | 1% LEL |
| NDIR | 0 - 100% LEL | 10% | 20% | N/A | N/A | 1% LEL |
| All alarm levels can be set using the WatchGas Device Link App or SST Dock. | *Hydrogen Cyanide sensor with an integrated H2S filter to eliminate cross interference. | ** High-stability broad-band sensor for certain organic gases and vapors. |
