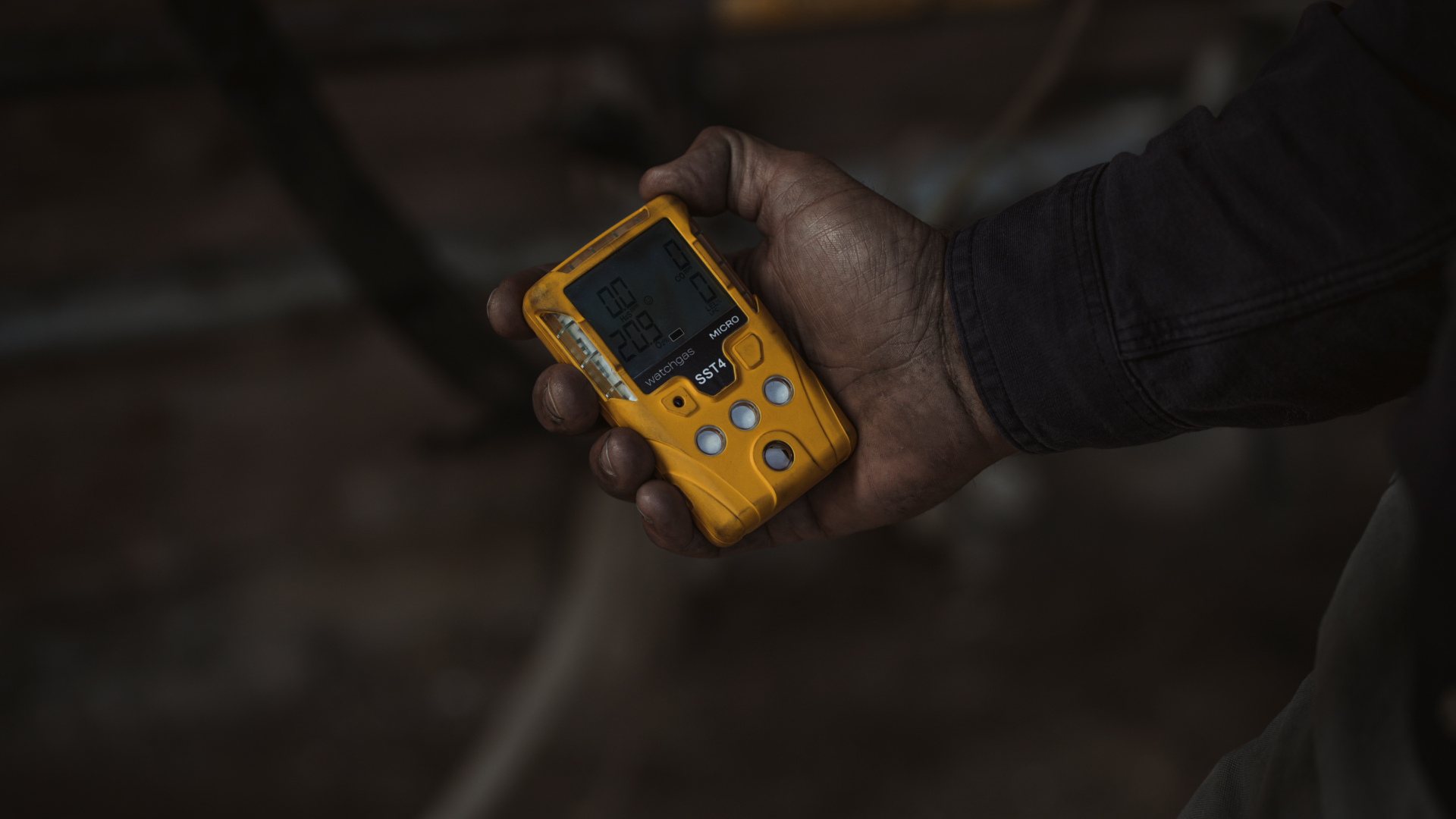

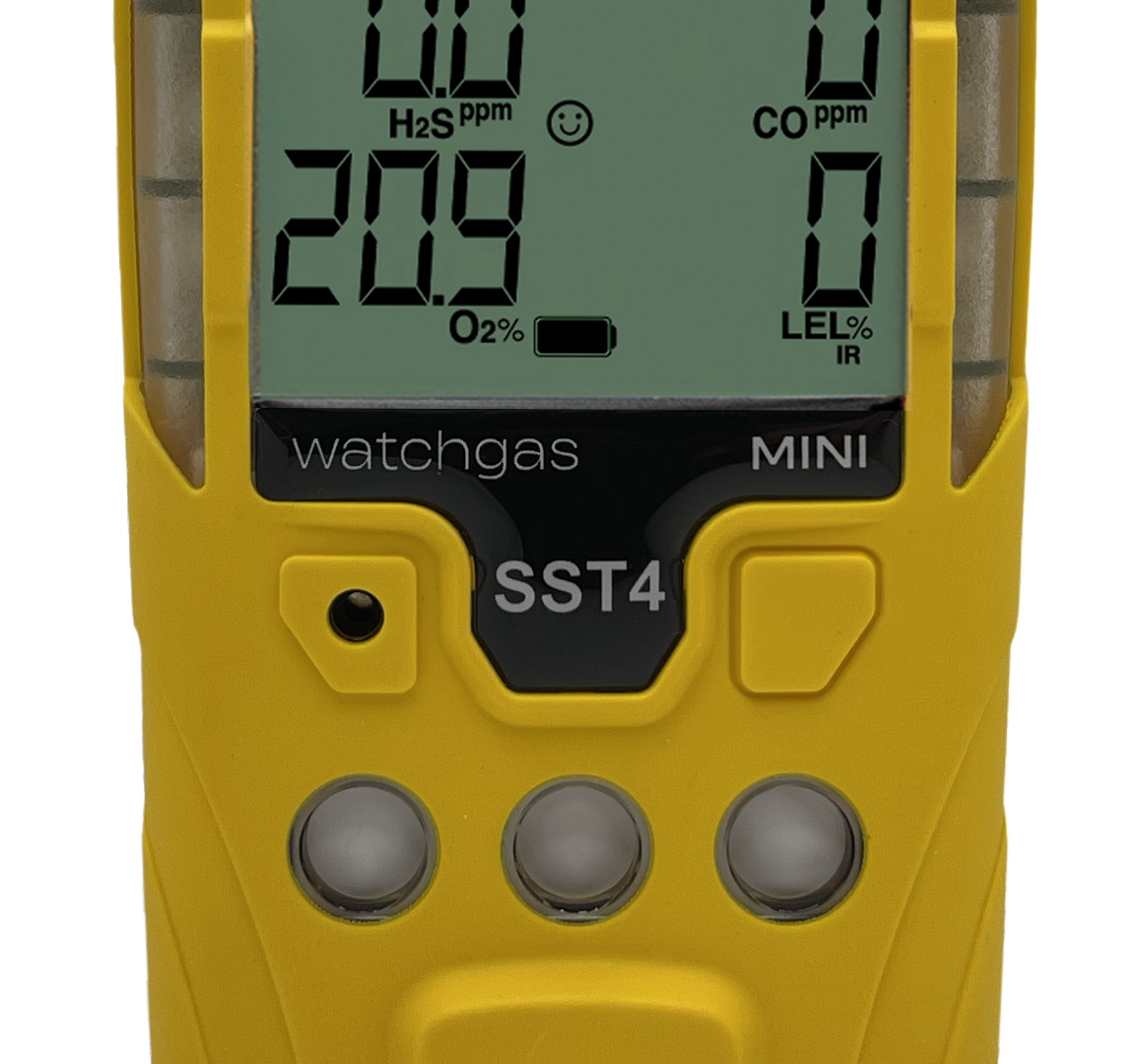

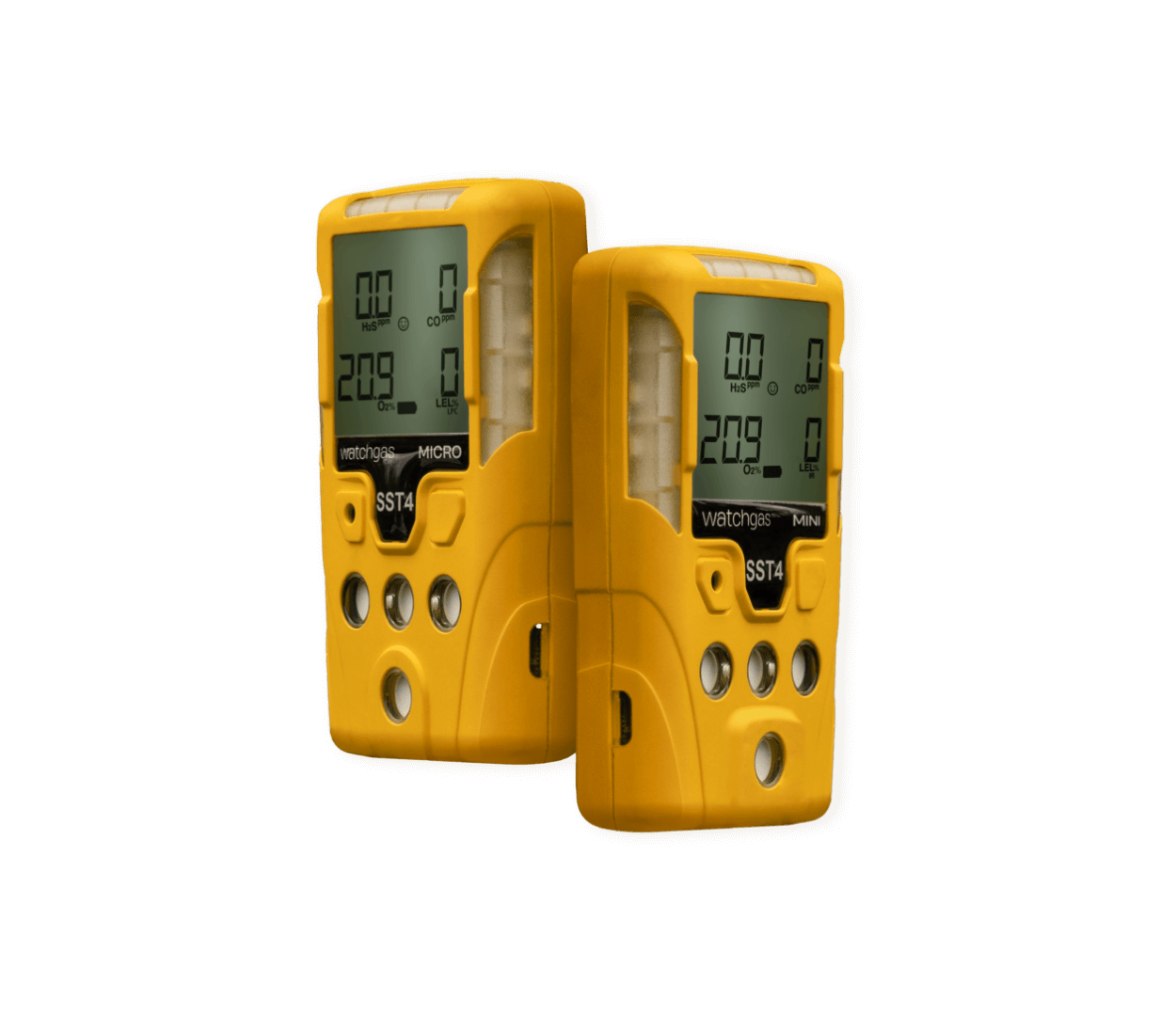

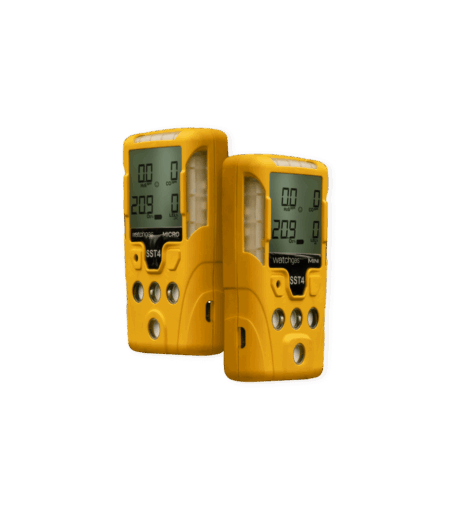

SST4: Micro/Mini
The SST4 Micro and SST4 Mini are four-gas devices designed with simplicity, size, and the user in mind. From use in the hot temperatures of the steel industry or Hazmat users to the extreme environments in the Oil and Gas industry. With a wide range of user options, the SST4 can be tailored for many use cases and applications.
- Near Field Communication built in as standard
- 95dB @ 30cm
- Wireless charging
- Longer runtimes
- Fastest T90 in its category
Description
As many industries move from single gas to a multigas approach, it is essential for end-user adoption. The SST4 range is designed with simplicity, size, and with the user in mind. With its compact yet rugged design, the SST4 is there when needed. From use in the hot temperatures of the steel industry or Hazmat users to the extreme environments in the Oil and Gas industry. With a wide range of user options, the SST4 can be tailored for a wide range of use cases and applications. The device can be set up simply using the WatchGas SST application, calibration, and bump test records. With Compliance Check, managing, maintaining, and ensuring maximum uptime of your fleet of devices has never been easier.
Product information
- Easy setup
- Near Field Communication built in as standard
- 95dB @ 30cm
- Wireless charging
- Longer runtimes
- Fastest T90 in its category
- Largest LCD
| Size | SST4 Micro: 103.9mm x 62.4mm x 26.1mm SST4 Mini: 107.9mm x 62.4mm x 26.1mm *Dimensions are stated without alligator clip. Please add 4mm in depth for dimensions with alligator clip. |
| Weight | SST4 Micro: 184g SST4 Mini: 188g |
| Operating temperature | -40 to +60°C / -40 to +140°F |
| Humidity | 5% - 95% RH (non-condensing) |
| Induction Charger | 2-3 hours |
| Event logging | 100 events |
| Data logging | 6 months |
| IP | IP65/68 |
| Communication | NFC |
| Calibration | 6 months as standard |
| Certifications & Approvals | North America: Class I, Div. 1, Gr. A, B, C, D. Class I, Zone 0, Gr. IIC ATEX/IECEx/UKEX LEL-LPC and LEL-CAT II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma -40°C ≤ Tamb ≤ +60°C EN 50270:2015+AC:2016, EN 301 489-1 V2.2.3 EN 301 489-3 V2.1.1, RoHS EN63000:2018 LEL-IR sensor II 1 G Ex ia op is IIC T4 Ga I M1 Ex ia op is I Ma -40°C ≤ Tamb ≤ +60°C |
| Warranty | 2-year warranty as standard |
| SST4-MICRO-X1OMH-Y | WatchGas SST4 Micro LPC/O2/CO/H2S (filtered) | Low Power Cat Bead | |||
| SST4-MINI-X2OMH-Y | WatchGas SST4 Mini LEL CAT/O2/CO/H2S (unfiltered) | CAT Bead |
Please check availability and delivery time with your local WatchGas distributor.
Please contact WatchGas or your local WatchGas distributor for the order information on accessories and spare parts.
The device comes standard in yellow.
