SST1: Serviceable
The SST1 Serviceable is one of the most cost-effective solutions on the market. Its 3-year replaceable battery and solid polymer sensor technology offer a compact and modular design without compromising its ruggedness.
- TWA & STEL Alarms
- NFC and WatchGas Application
- 3-year battery life based on alarms
- Serviceable battery and sensors
- Available sensors: CO, H2S, O2, SO2, H2 (low-range and high-range), NH3, PH3, CH4S
Description
The SST1 Serviceable offers one of the most cost-effective solutions on the market. With its 3-year replaceable battery and solid polymer sensor technology, the SST1 offers a compact and modular design without compromising its ruggedness. The SST1 Serviceable can be configured to your needs with one simple tap of the NFC and paired with the WatchGas Application. Monitoring for Low, High STEL, and TWA the SST1 will indicate any immediate risks and long-term exposure to toxic gases. SST1 is the platform that will allow us to expand on up to 8 different gases, so this is the ideal solution for your application.
Product information
- TWA & STEL Alarms
- NFC and WatchGas Application
- 3-year battery life based on alarms
- Serviceable Battery and Sensors
- Solid Polymer Sensor Design
- Largest LCD display
- External Filters
| Size | 83 × 49 × 20 mm (3.3 × 1.9 × 0.8 in) |
| Weight | 88 g (3.1 oz) |
| Temperature | CO, H2S, O2 SO2: -40°C to +60°C (-40°F to +140°F) / Others: -20°C to +60°C (-4°F to +140°F) |
| Humidity | 5 ~ 95 %RH (Non-condensing) |
| Response time T90 | H2S, CO, O2, PH3 H2 Low Range: < 10 sec CH4S: <40 sec SO2, H2 High Range: <55 sec NH3: <130 sec Other sensors may vary |
| Battery life | O2: 2 years H2S, CO, SO2, NH3, H2, PH3, Ch4S: up to 3 years, dependent on gas alarms |
| Event logging | Last 100 events |
| IP | IP67-68 |
| Communication | NFC |
| Shelf life | 1 year |
| Certifications & Approvals | ATEX, IECEX, UKEX II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma 0344 Int.Safe: Cl I Dv 1, Gr A,B,C,D T4 CSA C22.2 NO. 60079-0 CAN/CSA C22.2 NO 60079 UL 61010 safety requirements CAN/CSA-C22.2 NO 61010-1-12 Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU |
| Warranty | Instrument: 3 years Battery: 2 years based on 1 min of alarm per day Sensors: SO2 2 years, PH3: 1 year, NH3: 1 year, CH4S: 1 year, H2: 2 years, Other sensors: One year shelf life then two or three years from activation date depending on device type. |
| Sensor | Gas measuring range | Low alarm level | High alarm level |
| H2S | 0 - 500 ppm | 10 ppm | 15 ppm |
| CO | 0 - 2000 ppm | 35 ppm | 200 ppm |
| O2 | 0 - 25.0 % by vol. | 19.5 % | 23.5 % |
| SO2 | 0 - 100 ppm | 5 ppm | 10 ppm |
| Ch4S | 0 - 100 ppm | 2 ppm | 5 ppm |
| PH3 | 0 - 20 ppm | 1 ppm | 2 ppm |
| NH3 | 0 - 100 ppm | 25 ppm | 50 ppm |
| H2 Low Range | 0 - 1000 ppm | 100 ppm | 400 ppm |
| H2 High Range | 0 - 20,000 ppm | 4000 ppm | 8000 ppm |
SST1 Serviceable: Single gas device with TWA and STEL option. Can be set with WatchGas SST Range application
SST1-H – WatchGas SST1 H2S 0-500ppm Serviceable – Real Time Display (Hydrogen Sulfide)
SST1-M – WatchGas SST1 CO 0-2000 ppm Serviceable – Real Time Display (Carbon Monoxide)
SST1-O – WatchGas SST1 O2 0-25%vol. Serviceable – Real Time Display (Oxygen)
SST1-S – WatchGas SST1 SO2 0-100ppm Serviceable – Real Time Display (Sulfur Dioxide)

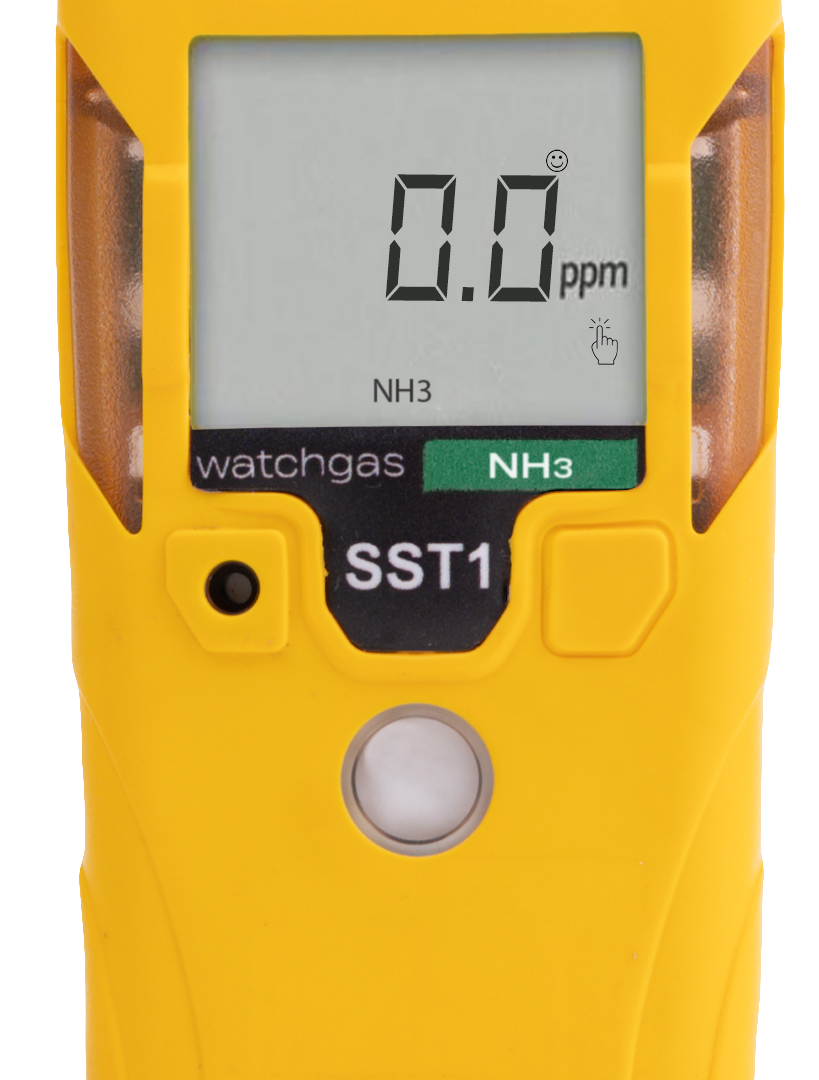

SST1-A – WatchGas SST1 NH3 0-100ppm Serviceable (Ammonia)
SST1-P – WatchGas SST1 PH3 0-20ppm Serviceable (Phosphine)
SST1-H2 – WatchGas SST1 H2 0-1000ppm Serviceable (Hydrogen)
SST1-H2HR – WatchGas SST1 H2 0-20,000ppm High Serviceable (Hydrogen)

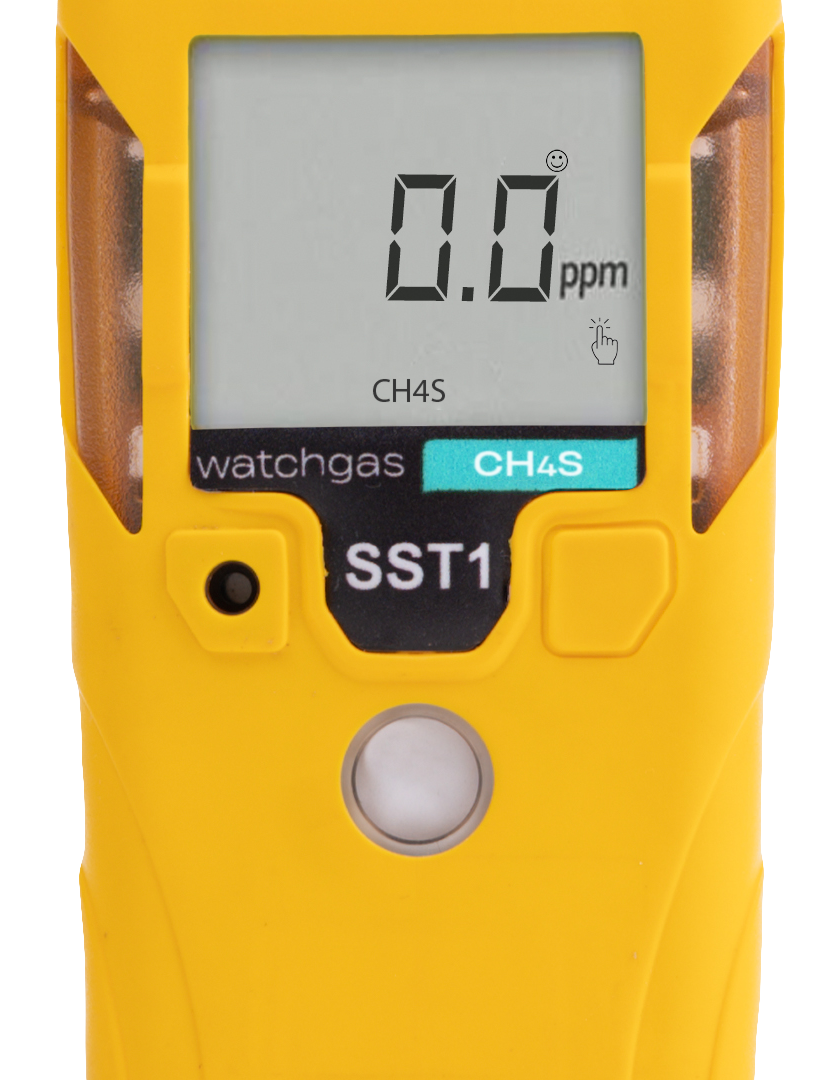

SST1-MM – WatchGas SST1 CH4S 0-100ppm Serviceable (Methanethiol AKA Methyl Mercaptan)
Please contact WatchGas or your local WatchGas distributor for the order information on accessories and spare parts.
The device comes standard in yellow.
