SST1: 2 & 3 year model
The SST1 single gas detector provides up to three years maintenance free operation and is availabe in H2S, SO2, CO or O2 (2 year only) models. Its simple design is perfect for users looking for ultimate protection while being easy to use, durable and cost effective.
- Easy setup

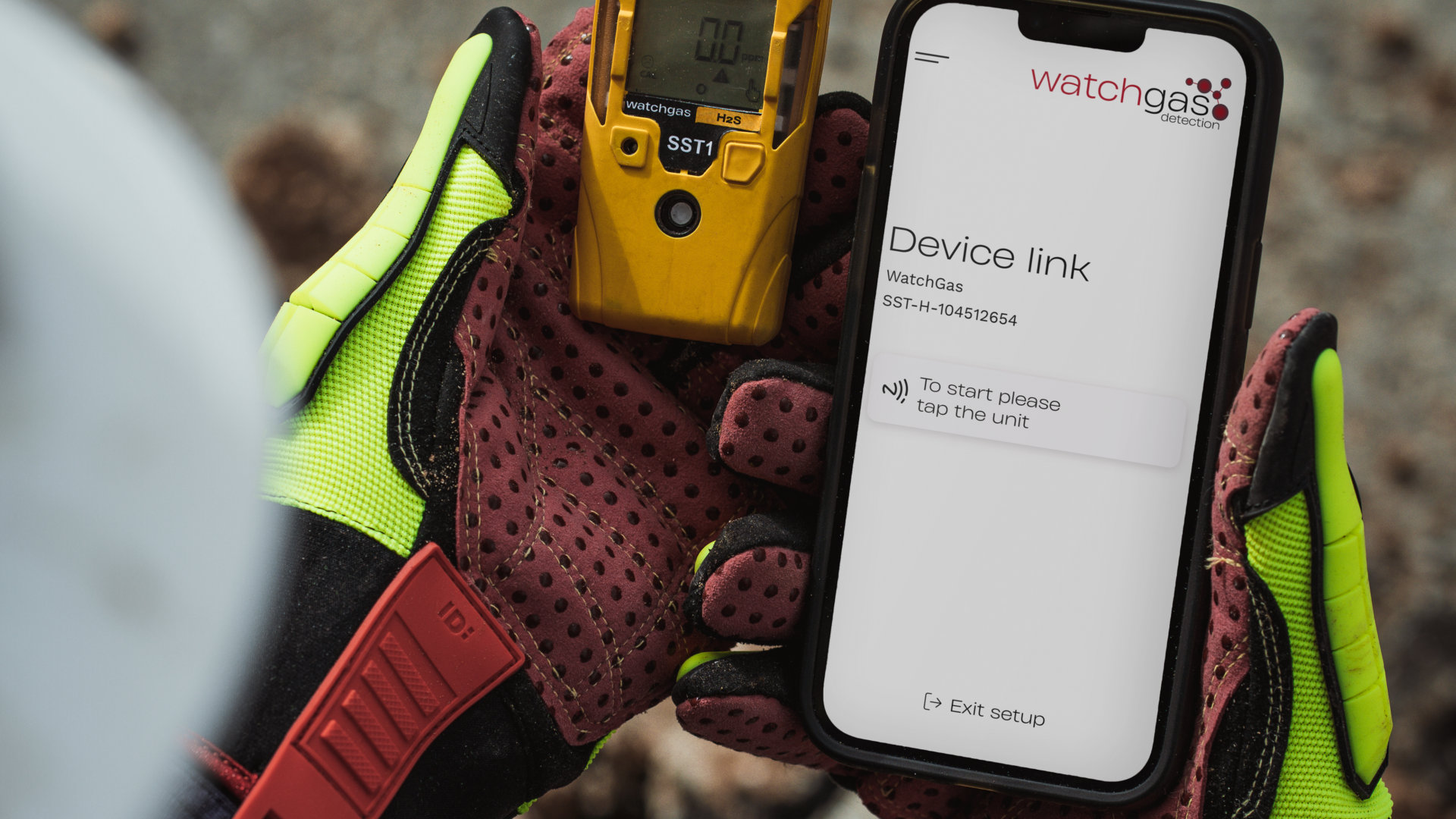

- NFC
- 95dB @30cm
- Cost effective
- Extremely stable and reliable sensors
- Largest LCD display
Description
The SST1 single gas detector provides up to three years maintenance free operation and is available in H2S, SO2, CO or O2 (2 year only) models. With its simple design, it is perfect for users that are looking for ultimate protection while being easy to use, durable and cost effective. Simply turn on the device and it runs 24/7 for 2 or 3 years — no calibration, no battery replacement, no charging and no stress. The device is easy to use and reduces the need for extensive training. The SST1 coupled with the SST Dock allows for the fastest bump testing on the market and makes fleet management extremely simple.
Product information
- Easy setup
- NFC
- 95dB @30cm
- Cost effective
- Extremely stable and reliable sensor
- Largest LCD display
- Rugged
| Size | 83 × 49 × 20 mm (3.3 × 1.9 × 0.8 in) |
| Weight | 88 g (3.1 oz) |
| Temperature | -40 to +140°F /-40 to +60°C |
| Humidity | 5 ~ 95 %RH (Non-condensing) |
| Battery life | H2S, CO, O2, SO2: 2 years H2S or CO: 3 years depending on the version |
| Event logging | Last 100 events |
| IP | IP67-68 |
| Communication | NFC |
| Shelf life | 1 year |
| Certifications & Approvals | ATEX, IECEX, UKEX II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma 0344 Int.Safe: Cl I Dv 1, Gr A,B,C,D T4 CSA C22.2 NO. 60079-0 CAN/CSA C22.2 NO 60079 UL 61010 safety requirements CAN/CSA-C22.2 NO 61010-1-12 Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU |
| Warranty | One year shelf life then two or three years from activation date depending on device type |
| Sensor | Gas measuring Range | Low alarm level | High alarm level |
| 2- or 3-year detector H2S | 0 - 500 ppm | 10 ppm | 15 ppm |
| CO | 0 - 2000 ppm | 35 ppm | 200 ppm |
| 2 year detector O2 | 0 - 25.0% by vol. | 19.5 % | 23.5 % |

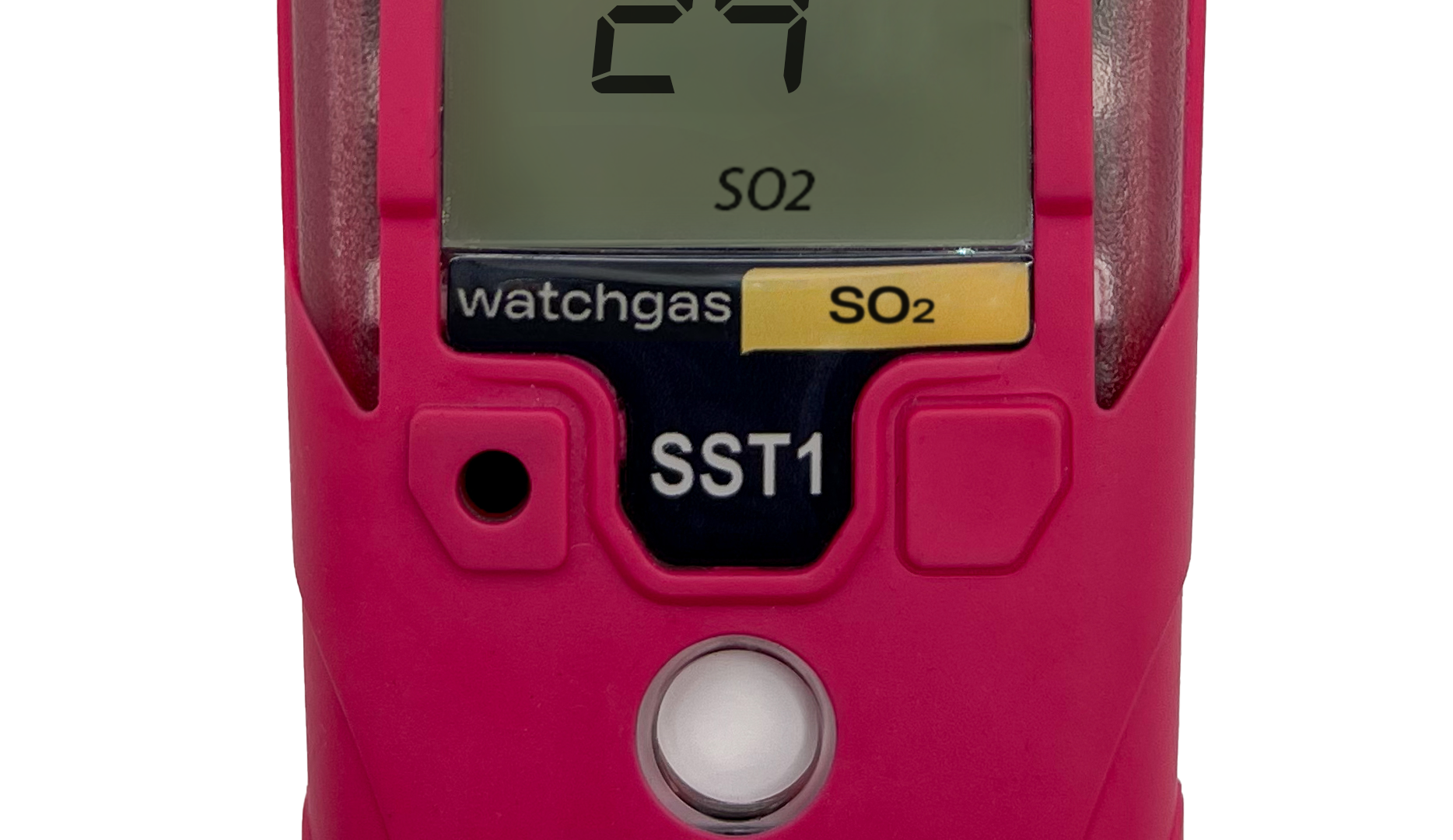

| SO2 | 0 - 100 ppm, | 5 ppm | 10 ppm |
SST1: 2 year fixed life single gas device
SST1-H-24 – WatchGas SST1 H2S 0-500ppm 2-year fixed life (hydrogen sulphide)
SST1-M-24 – WatchGas SST1 CO 0-2000ppm 2-year fixed life (carbon monoxide)
SST1-O-24 – WatchGas SST1 O2 0-25%vol. 2-year fixed life (oxygen)
SST1-S-24 – WatchGas SST1 SO2 0-100ppm 2-year fixed life (sulfur dioxide)
SST1-H-24-P – WatchGas SST1 H2S 0-500ppm 2-year fixed life Pink (hydrogen sulphide)
SST1-M-24-P – WatchGas SST1 CO 0-2000ppm 2-year fixed life Pink (carbon monoxide)
SST1-O-24-P – WatchGas SST1 O2 0-25%vol. 2-year fixed life Pink (oxygen)
SST1-S-24-P – WatchGas SST1 SO2 0-100ppm 2-year fixed life Pink (sulfur dioxide)
SST1: 3 year fixed life single gas device
SST1-H-36 – WatchGas SST1 H2S 0-500ppm 3-year fixed life (hydrogen sulphide)
SST1-M-36 – WatchGas SST1 CO 0-2000ppm 3-year fixed life (carbon monoxide
SST1-H-36-P – WatchGas SST1 H2S 0-500ppm 3-year fixed life Pink (hydrogen sulphide)
SST1-M-36-P – WatchGas SST1 CO 0-2000ppm 3-year fixed life Pink (carbon monoxide)
Please contact WatchGas or your local WatchGas distributor for the order information on accessories and spare parts.
The device comes standard in yellow.
